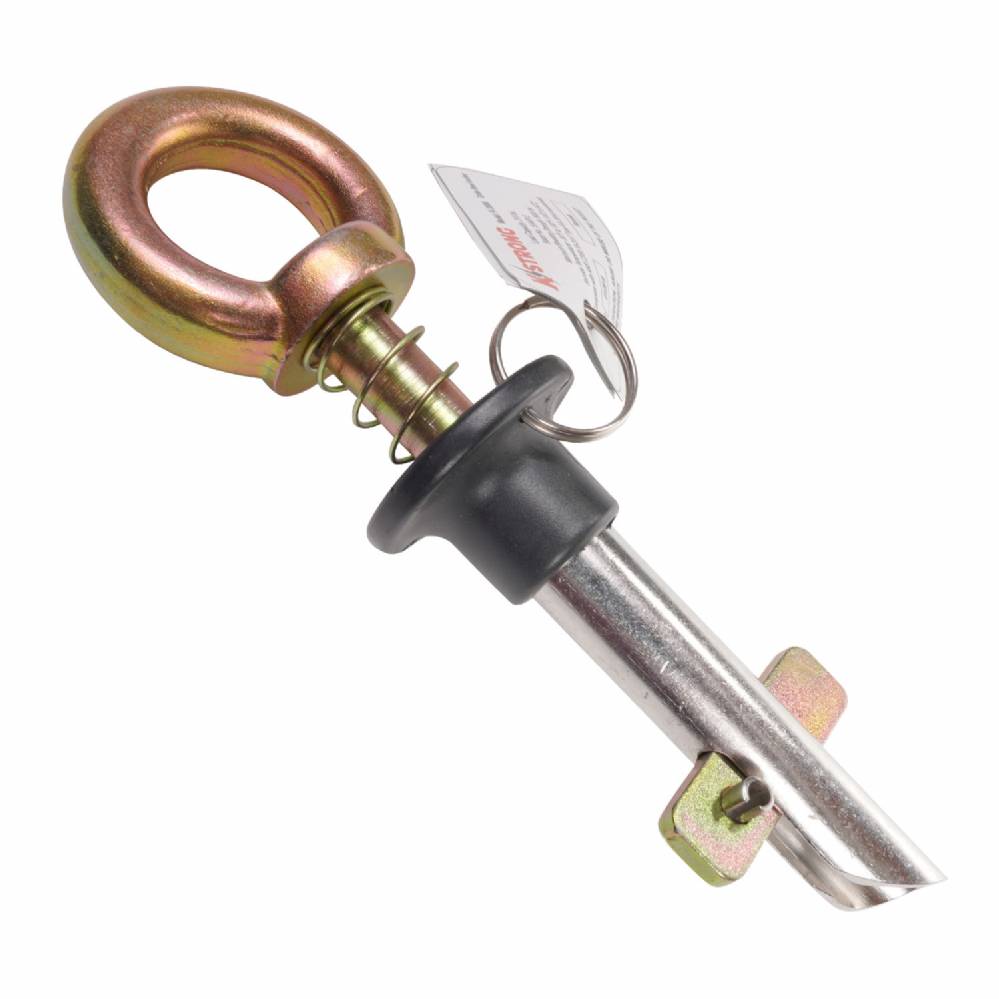

Removable Steel Girder Anchor (ANSI)

Key Features

DESIGN:

• Girder steel anchor is removable/ reusable anchor to be mounted on solid steel structures, Girders and steel I-Beams.
• Can be installed very easily with one hand only.
• Maximum thickness of the structure on which installation is possible is 1.57” (40mm).

USAGE:

For use as an anchorage point for fall protection equipment .

MATERIAL:

Eye nut & Main body, Alloy steel, Outer Body, Stainless steel moulded with polymer

RECOMMENDED BOLT HOLE SIZE:

0.80” (21mm) to 1.18” (30mm)

STATIC STRENGTH:

Greater than 5000 lbs (2268 kg)

WEIGHT:

1.21 lb ± 0.02 lb (550 gm. ±10gm).

RELEVANT STANDARDS:

Meets or Exceeds ANSI Z359.18-2017 Type A
