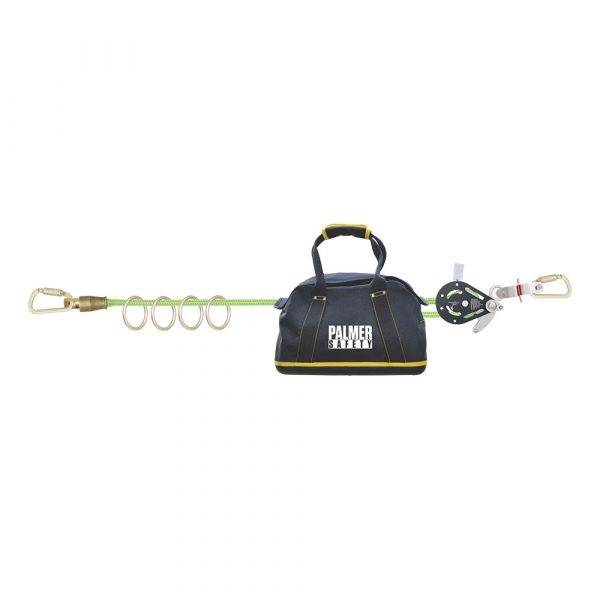

4 MAN HORIZONTAL LIFELINE

Horizontal Lifeline system. Covers span length of 15’ to 100’. Min Breaking Strength 5620 lbs. Kernmantle rope of diameter 5/8″. Comes complete with carabiners, rope tensioner and carrying bag. Meets or Exceeds ANSI Z359.1-2007.

Key Features

DESIGN:

• Temporary horizontal lifeline consisting of 0.63” diameter Kernmantle rope having a swivel brass connector at one end of the lifeline and a specially designed tensioner at the other end.
• Provided with forged steel O Rings to be used as mobile anchors for the workers to connect to the lifeline permanently.

SPAN LENGTH: Minimum: 16.40 ft. | Maximum: 82.02 ft.

MATERIAL: O Ring: Forged alloy steel Tensioner: Aluminum alloy & stainless steel

MINIMUM BREAKING STRENGTH: 25 kN

SYSTEM WEIGHT: 20.46 lbs. ± 0.22 lbs.
