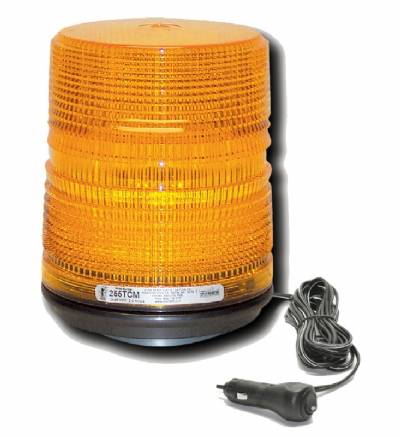

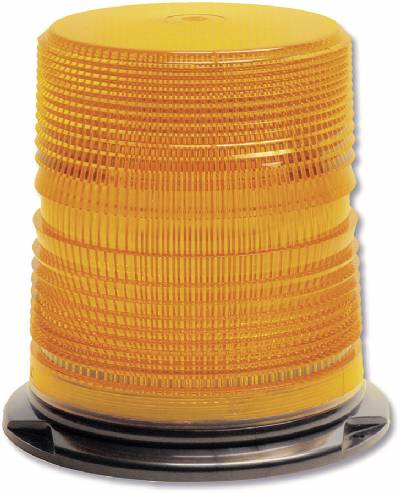

High Profile Strobe Light 255tc

The 255TC series offers field selectable flash patterns of double flash or quad flash via an internal jumper. The virgin Lexan® lens easily twists on/off the durable and lightweight polycarbonate plastic, universal mount, flanged base. The modular circuit is completely encapsulated for increased shock and weather resistance and is also protected with a low voltage shutdown feature. Ships complete with mounting hardware and instructions.

Product Features:

• Field selectable flash pattern via internal jumper: Standard Quad Flash or Selectable Double Flash
• Features Virgin Lexan*, Twist-Off Lens
• Features a durable and lightweight Polycarbonate plastic, universal flange base
• Completely encapsulated circuit for increased weather and shock resistance
• Automatic low voltage shutdown below 9.5V DC
• Operates automatically 12V DC - 48V DC
• Amp Draw: 1.2A@12V DC, .5A@24V DC, .3A@36V DC, .175A@48V DC
• Joule Rating: 7 Joule Double Flash - 10 Joule Quad Flash
• Flash Rate: 80 DFPM / 65 QFPM
• Lens Colors: Amber, Red, Clear, Blue
• SAE Approvals: J1318 Class 2
• Model Numbers / Dimensions:
  - 255TC, 255TCM, 255TCV: 6-11/16" tall x 6-13/32" dia.
